The base BH200, are designed for fuses of 14x51mm, especially for use in photovoltaic equipment. Designed for all fuses of the Adler A74 series.

Rated Voltage: 1500 VDC
Rated Current: up to 30 A
Short Circuit Current Rating(SCCR): DC 10kA
Standards: UL 4248-18, EN 60947-3
Material Flammability: UL 94-V0
Mounting: DIN Rail mounting
Wire Range: 5-13 AWG
Operation Temperature: -40°C to +150°C
UL Listed File: E486822
TUV File: R 50393975

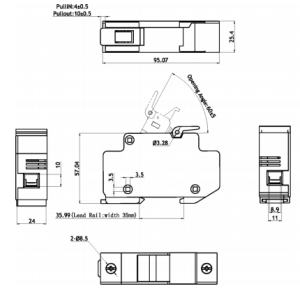

size BH200
