The Base BH100-01 are designed for all 10x38mm PV fuses, as well as for all Adler fuses of the A73 and A38 series. Specially designed for use in photovoltaic equipment.

Rated Voltage: 1000 VDC/ 1100 VDC
Rated Current: up to 30 A/ 32A
Short Circuit Current Rating(SCCR): DC 30kA@1000VDC/ 20kA@1100VDC
Standards: UL 4248-18, EN 60947-3
Wire Range: 18 – 8 AWG
Max. Torque: 3.4 N·m
Max. Dissipation: 6 W
Operation Temperature: -40℃ to +130℃
Material Flammability: UL 94-V0
Mounting: DIN Rail mounting
Degree of protection IP20
UL Listed File: E486822
TUV File: R 50393963

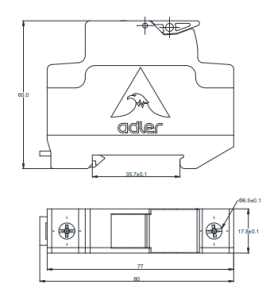

Base BH100-01 Size
